Transformation of 530 dwellings - Grand Parc Bordeaux

0

Transformation of 530 dwellings - Grand Parc Bordeaux

Mismatches Price Vulnerable groups
Urban Design Quality Liveability
Promotion and production Public promotion
Ownership and tenure Protection of social housing

Main objectives of the project

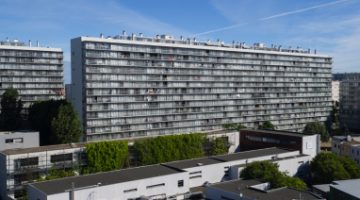

As the recipient of the 2019 EU Mies van der Rohe Award, this project involved the refurbishment of three social housing buildings comprising 530 units in Bordeaux, France. Originally constructed in the early 1960s, the need for renovation arose after the possibility of demolition was dismissed. Remarkably, the transformation of these dwellings occurred while residents continued to occupy them. A key aspect of the renovation involved extending the existing space by adding a winter gardens and balconies accessible from every room, akin to a traditional house layout. This expansion not only broadened the usable space and mobility within the buildings but also redefined the quality of housing offered while improving the energy efficiency of the building envelope. This project serves as a compelling example of forward-thinking, responsible housing solutions for the future.

Date

  • 2017: Construction
  • 2019: Ganador

Stakeholders

  • Promotor: AQUITANIS
  • Architect: Christophe Hutin Architecture
  • Architect: Frédéric Druot Architecture
  • Architect: Lacaton & Vassal architectes

Location

Continent: Europe
City: Bordeaux
Country/Region: Bordeaux, France

Description

This project presents a bold approach to challenging the existing European housing stock from the post-war era, achieving remarkable results with minimal resources. Rather than opting for demolition, which consumes significant energy, the client recognized and endorsed the benefits of transforming three existing buildings. Through this initiative, social housing, often criticized for its built heritage, serves as a model for relevant and cost-effective transformation, turning perceived deficiencies into generous, inviting, and efficient dwellings that redefine typologies, living conditions, comfort, and aesthetics, thereby enhancing the urban residential landscape.

The transformation imbues all dwellings with new spatial qualities and living standards by meticulously assessing existing strengths to preserve and identifying areas for enhancement. The addition of expansive winter gardens and balconies to each apartment offers increased space, natural light, usability, and panoramic views. Small existing windows are replaced with large glazed sliding doors opening onto the winter gardens. Technical upgrades include renovations to bathrooms, electrical systems, and the replacement of two former elevators with a larger, more efficient one in each staircase. New access halls and improved front gardens enhance the overall environment. Throughout the construction process, all families remained in their dwellings, with no rent increase post-transformation.

The project, executed with inhabitants in residence, avoids structural interventions such as changes to stairs or floors, opting instead for additions and extensions designed for full utilization. Internally, only facility refurbishments and finishings were undertaken. The 3.80-meter extensions expand usable space and mobility, seamlessly connecting rooms to the winter gardens, akin to private semi-outdoor spaces found in houses. The energy efficiency of the building envelope is significantly enhanced by these winter gardens, serving as passive solar collectors. Focusing on economy, the budget prioritizes extensions, crucial for substantial and sustainable improvements in dwelling quality, while overall transformation costs remain within budget parameters, aligning with typical expenses for basic facade renovations, insulation, and facilities.

Construction materials and methods were selected to optimize efficiency and minimize disruption. Concrete was exclusively used for foundations, with concrete window sills removed to facilitate floor-to-ceiling openings for double-glazed sliding doors. Thermal curtains enhance interior insulation. Lightweight facades composed of transparent, corrugated polycarbonate panels and aluminum-framed glass, equipped with reflective solar curtains, provide exterior insulation. Glazed handrails line the balconies.

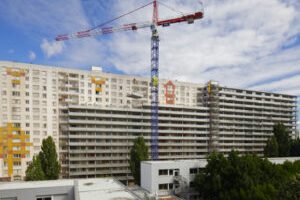

To expedite construction, prefabricated modules were employed, erected like scaffolding in front of the buildings. Precast slabs and columns were transported to the site and assembled into a freestanding structure using a crane. Efficient planning and scheduling allowed for a swift transformation, completing each apartment within 12-16 days: half a day for laying concrete slabs, two days for adapting the old facade, two days for installing the new facade, and 8-12 days for interior renovations.

Transformation of 530 dwellings

0

Transformation of 530 dwellings

Policies and regulations
Financing
Promotion and production
Ownership and tenure

Main objectives of the project

The project consists in the transformation of 3 social housing’s buildings of 530 dwellings.

Date

  • 2017: Rehabilitación

Stakeholders

  • Architect: Christophe Hutin
  • Architect: Frederic Druot
  • Architect: Jean Philippe Vassal
  • Architect: Anne Lacaton

Location

Continent: Europe
City: Bordeaux
Country/Region: France

Description

The transformation gives to all dwellings new qualities of space and living, by inventorying very precisely the existing qualities that should be preserved, and what is missing that must be supplemented.

The addition of large winter gardens and balconies in extension of the existing give the opportunity, for each apartment, to enjoy more space, more natural light, more mobility of use and more views.

The existing small windows are replaced by large glazed sliding doors opening onto the winter garden.

The technical facilities are upgraded: bathrooms electrical installation, the two former elevators in every staircase are replaced by a bigger one and supplemented by a new elevator.

New access halls are done and the gardens in front of the building are improved. All the families stayed in their dwelling during the construction works. No increase of rent after the transformation.
While the high-rise buildings for luxury housing are now designated as examples of ecological housing, the G, H and I buildings offer the opportunity to reach these qualities immediately, in a generous, economic and sustainable way.

Due to the proposal of transformation with all inhabitants inside, the project excludes interventions on the existing structure, stairs or floors, and proceeds by additions and extensions, large enough to be fully used. Inside the flats, only refurbishment of facilities or finishes has been done.

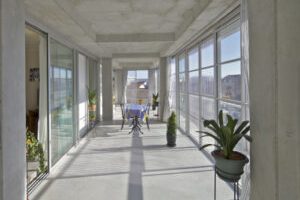

The extensions of 3,80m deep widen the space of use and the mobility through large glazed sliding doors connecting every room to the winter garden, offering, as in a house, a pleasant private semi outdoor space.

The energetic performance of the building envelope is highly improved by the addition of winter gardens which act as passive solar collectors.

The work on economy allows to concentrate the budget on the extensions, the key point to improve in a significant and sustainable way the dwellings quality. The overall cost of transformation respects the budget, based on the usual cost for a basic renovation of facades, insulations, and facilities.
In order to reduce the duration of the works, the construction uses prefabricated modules, fast built like scaffolding in front of the building. Precasted slabs and columns are transported to the site and lifted into position by a crane to form a freestanding structure. Concrete poured in place was used only for foundations.

Along the added structure, the original windows are removed in a specific intervention to take care of asbestos-contaminated seals. Concrete window sills are removed to open from floor-to-ceiling, and create double-glazed sliding doors. Thermal curtains behind the glass provide extra insulation to the heated interiors.

On the other side, a lightweight façade of transparent, corrugated polycarbonate panels and glass in aluminium frames is assembled and equipped with reflective solar curtains. Glazed hand railings run along the balconies.

A proper planning and scheduling of the construction site allowed to achieve the transformation in just 12-16 days per apartment: half day for laying the concrete slab, 2 days for adapting the old façade, 2 days for placing the new façade, and 8-12 days for renovating the interiors.
